Support Material
Support materials in 3D printing are specialized filaments or structures designed to provide temporary support for overhangs, bridges, or complex parts during the printing process.
They prevent parts from sagging, warping, or collapsing, allowing for high precision and complex geometries. Once the main print is complete, these supports are removed or dissolved, depending on the material.
PolyDissolve™ S1
PolyDissolve™ S1 is a water dissolvable support for PLA, TPU, PVB and Nylon based filaments from our portfolio.
It is specifically engineered to have a perfect interface with these materials while also displaying good solubility.
Colours
Natural
Net Weight
750 g
Diameter Size
1.75 mm / 2.85 mm
Application
PolyDissolve™ S1 is ideal for printing complex geometries such as art sculptures, figurines, models with internal cavities, all-in-one mechanisms or architectural models.
It is specifically engineered to have a perfect interface with these materials, supporting them while printing while also displaying accelerated solubility in room temperature water after printing.
Key Features
Printing Settings
-
Printing temp: 215-225°C
-
Printing speed: 30-40mm/s
-
Bed temp: 25-60°C
-
Chamber temp: N/A
-
Fan: On
-
Dry settings: 80°C for 12h
-
Annealing: N/A
Compatible with multiple materials
Good solubility
Excellent support interface
PolySupport™
PolySupport™ is a break away support for Polymaker PLA based filaments.
It has a perfect interface with PLA, strong enough to support it and easily removable by hand.
Colours
Pearl White
Net Weight
500 g / 750 g
Diameter Size
1.75 mm / 2.85 mm
Printing Settings
-
Printing temp: 220-230°C
-
Printing speed: 20-40mm/s
-
Bed temp: 25-60°C
-
Chamber temp: N/A
-
Fan: On
-
Dry settings: 80°C for 8h
-
Annealing: N/A
Application
PolySupport™ is a breakaway support material which can be removed very easily.
It’s advantage over dissolvable support is that its faster to remove and requires no tools or equipment.
For geometric overhangs such as boxes, architectural models or brackets, PolySupport™ will offer a better experience than dissolvable support.
PolySupport™ is also compatible with TPU, PC and PVB based materials from the Polymaker portfolio.
Key Features
Easy to break away
Perfect support
interface with PLA
Good printability
PolySupport™
for PA12
PolySupport™ for PA12 is a break away support for PA12 with no tools required.
Colours
Grass Green
Net Weight
500 g
Diameter Size
1.75 mm / 2.85 mm
Printing Settings
-
Printing temp: 270-300°C
-
Printing speed: 30-60mm/s
-
Bed temp: 50-80°C
-
Chamber temp: N/A
-
Fan: On
-
Dry settings: 80°C for 8h
-
Annealing: N/A
Application

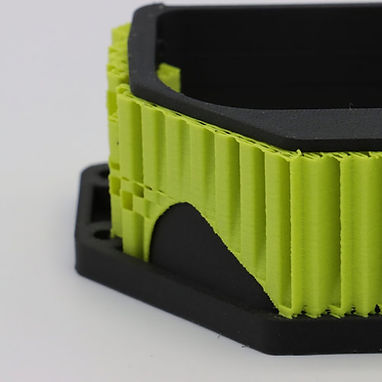

PolySupport™ for PA12 is a break away support specifically engineered for PA12 based filaments.
It has a perfect interface with long-chain nylons, strong enough to support it and easily removable by hand.
PolySupport™ for PA12 prints at a similar temperature to PA12 and is compatible with open, enclosed and heated chambers.
The filament is colored green so its easy to see and remove after printing.
Key Features
Easy to break away
Perfect support
interface with PA12 based material
Good printability
